CSF Performance All Aluminum Radiator FL5/DE5

CSF 7221 High-Performance All-Aluminum Radiator

The CSF 7221 radiator is engineered specifically for the 2023-2024 Honda Civic Type R and Acura Integra, delivering exceptional cooling performance for high-powered applications. With a robust all-aluminum construction and advanced cooling technologies, this radiator is designed for serious enthusiasts who demand reliability and efficiency.

Key Features

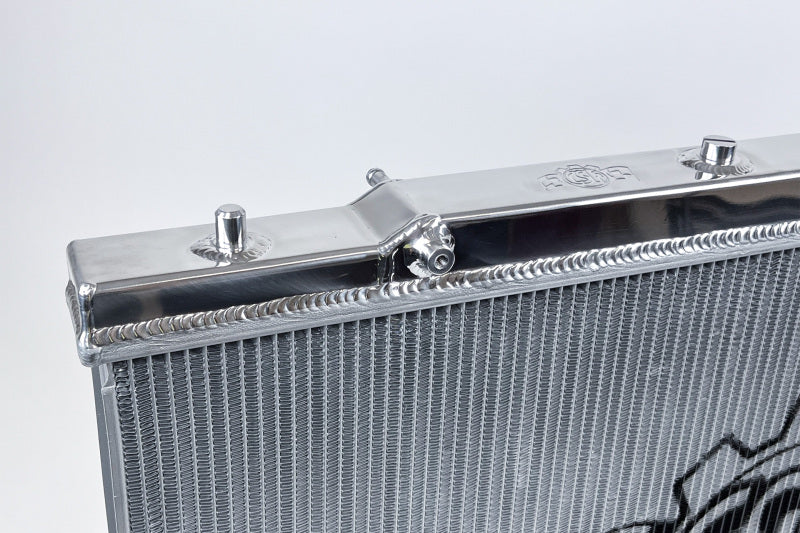

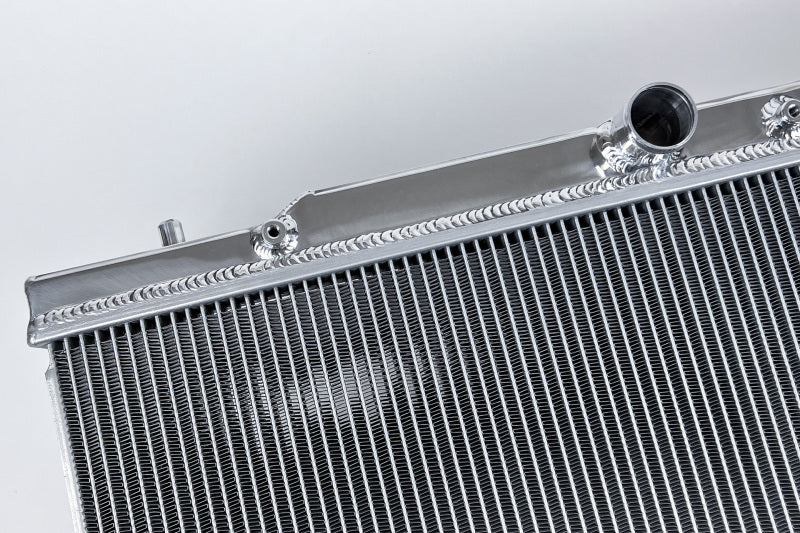

• 100% All Aluminum TIG-Welded Construction for enhanced durability.
• 2-Row, 42mm Ultra-High-Performance Core that increases fluid capacity and heat dissipation.
• CSF's Exclusive B-Tube Technology enhances heat transfer by approximately 15% compared to standard designs.
• New 5mm Tall Ultra Efficient Fins with a multi-louvered design maximize surface area and airflow.
• True Plug-and-Play "Drop-in Fit" installation requires no modifications, utilizing OEM mounting hardware.

Dimensions and Specifications

• Core Height: 15.75 in.
• Core Width: 29.6875 in.
• Core Thickness: 42mm.
• Inlet Diameter: 1.625 in. (Top Left)
• Outlet Diameter: 1.625 in. (Bottom Left)
• Cooling Type: Down Flow.
• Finish: Polished "Mirror Finish" for aesthetic appeal.

Performance Benefits

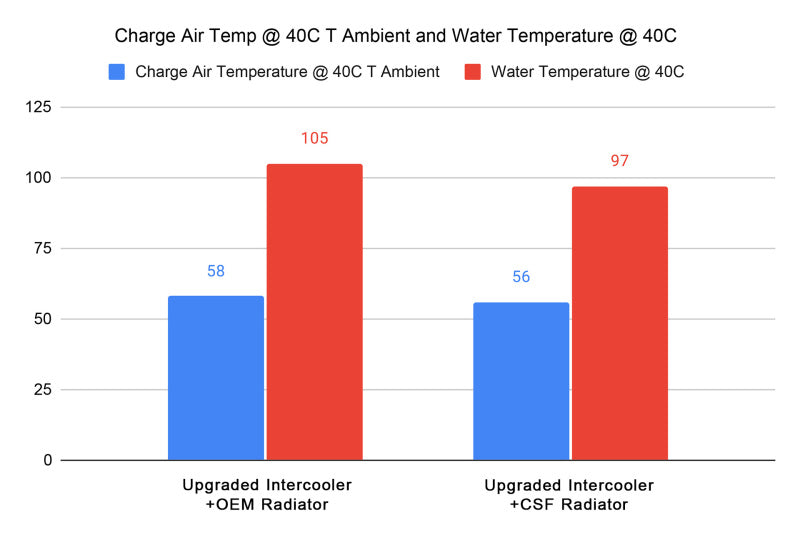

Testing has shown that the CSF 7221 radiator can lower engine coolant temperatures by 6-8% compared to the factory radiator, making it an excellent upgrade for those running higher horsepower setups or larger front mount intercoolers. This is particularly beneficial for drivers who push their vehicles on the track or during spirited driving, as it helps maintain optimal operating temperatures and enhances engine longevity.

Installation Notes

The CSF 7221 radiator mounts directly in the factory location with no need for cutting or additional modifications. This ensures a straightforward installation process, allowing you to focus on performance rather than complex setup tasks.

Fitment

Compatible with:

• 2023-2024 Acura Integra
• 2023-2024 Honda Civic Type R
