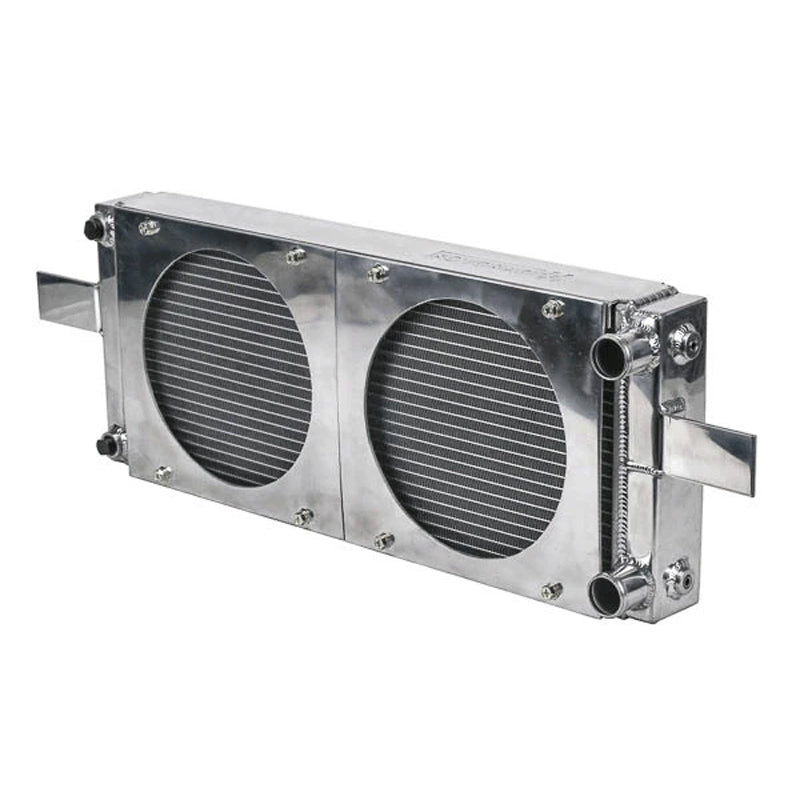

Koyo Universal Pocket Radiator - Honda / Acura

NOTE: This radiator has no filler neck. For use with upper coolant housing with filler neck. Not a direct bolt on. Some modification / fabrication may be required.

Features:
- High Density 53mm thick Hyper Core
- Versatile mounting tabs
- Design can be easily reversed or flipped

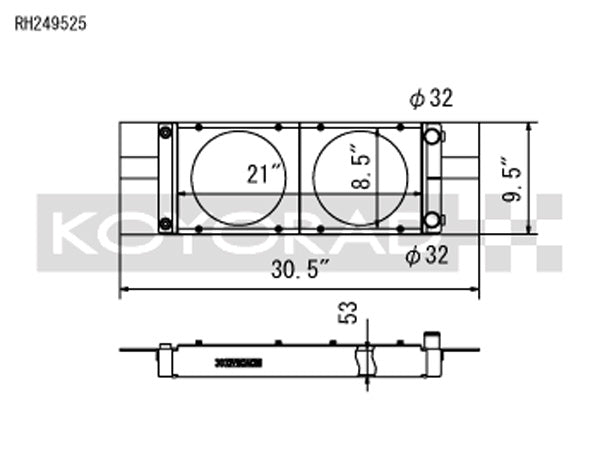

- (L)24" x (H)9.5" Total length including mounting tabs: 30.5"
- Two air purge ports
- Two 1/8 PT temperature sensor ports
- Two Row Core
- Dual pass "NFLO" partition
- Removable fan shrouds
- Compatible with 8 inch electric fans (see below for Koyorad verified options) - High polished
- 32mm (1.25") Inlet and Outlet
- Triple Pressure tested

Electric fans are not included, but can be sourced from most online retailers.

Electric Fan Options for Koyorad Pocket Radiator
Brand Part # - Fan Type
- Spal 30100394 Puller
- Spal 30100358 Puller
- Spal 30100393 Pusher
- Jegs 52111 Reversible
- Speedmaster PCE185.1017 Reversible
- Derale 16508 Reversible
- Derale 16618 Reversible
- Derale 16908 Puller
- Zirgo 126336 Reversible
- Summit Racing SUM-G4880 Reversible
- Perma Cool 126336 Puller
